Vectorbord®   Plugbord™

Please Note : Vectorbord® Circbord™ and Plugbord™  protoboards cannot be rated for voltage & current because of the many applications/conditions, variations, and devices that can be used.

3U Eurocard, Hard Metric for cPCI® connectors

Image Part Number Size Dimensions(H x L x TH) Hole Diameter Hole Pitch Circuit Pattern Material

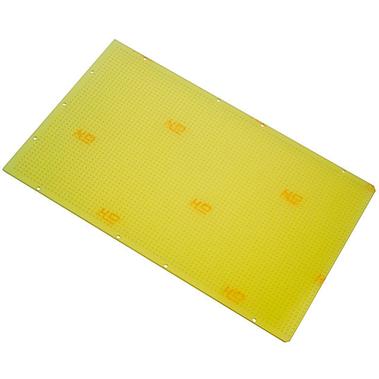

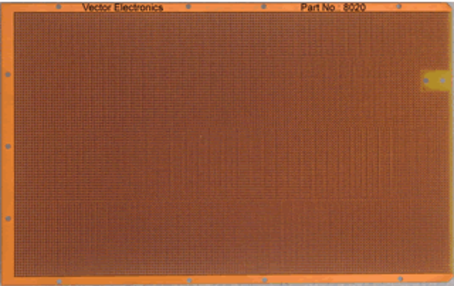

8020  Vector Electronics & Technology, Inc. 3.94" x 6.30" x 0.062" 0.025" PTH 0.039" Pad Per Hole
(both sides)
FR4

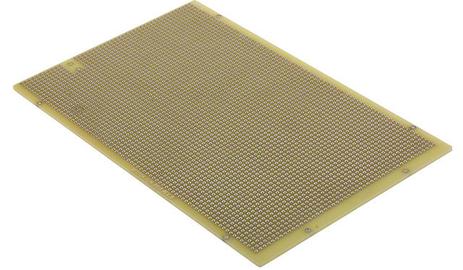

8017  Vector Electronics & Technology, Inc. 3.94" x 6.30" x 0.062" 0.025" PTH 0.078" Pad Per Hole
(both sides)
FR4

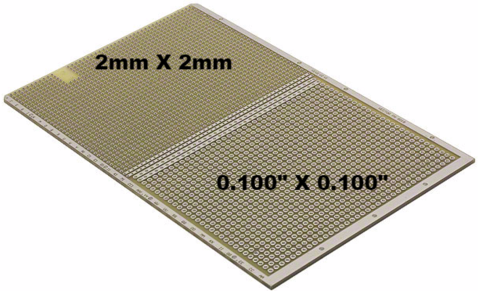

8018 - Vector Electronics & Technology, Inc. 3.94" x 6.30" x 0.062" 0.025" PTH
0.042" PTH
0.078"
0.100"
Pad Per Hole
(both sides)
FR4
47Q78WE 3.94" x 6.30" x 0.062" 0.025" NPTH 0.078" No pattern
(both sides)
FR4

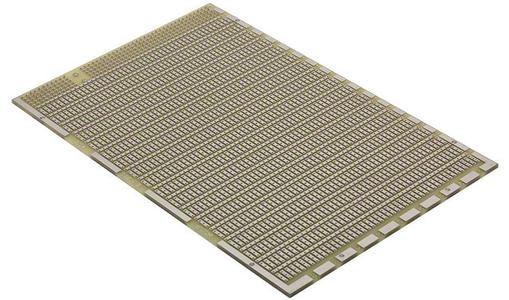

8024  Vector Electronics & Technology, Inc. 3.94" x 6.30" x 0.062" 0.025" PTH 0.078" 3-Hole Pads
(both sides)
FR4

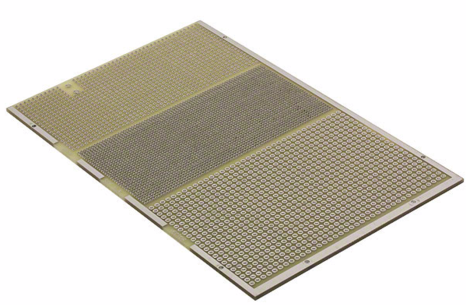

8028  Vector Electronics & Technology, Inc. 3.94" x 6.30" x 0.062" 0.025" PTH
0.042" PTH
0.078"
0.050"
0.100"
Pad Per Hole
(both sides)
FR4
