Vectorbord®

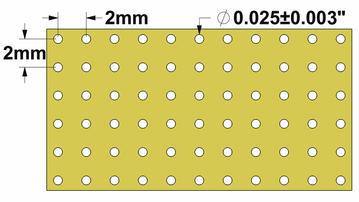

Q - Pattern Detail

Size/Dimensions	3.94" W x 6.30" L (100mm x 160mm)
Board Thickness	0.062" (1.57mm)
Hole Diameter	0.025" (0.635mm) Not Plated Thru
Hole Pattern	Q
Material	FR4 Epoxy Glass
Copper Clad / Unclad	Unclad (No Copper on either side)
UL Flammability Class	94V-0
RoHS Status	Lead free / RoHS Compliant
