8018, 8018J1 Hard Metric Eurocard Plugbord™

8018

• 3U x 160mm Eurocard size for 2mm Hard Metric connector.

• Pad-Per-Hole both sides.

• Combination Pattern: Half 2mm grid and other half 0.1” grid.
• Pad and bus surfaces solder coated.
• Accepts cPCI 2mm J1 (25 row) & J2 (22 row) connectors on edge.

Description

Dimensions

(H x W x Thick)

3.94" x 6.30" x 0.062"

(100mm x 160mm x 1.57mm)

Hole Diameter

0.025" (0.635mm) Plated Thru

0.042" (1.067mm) Plated Thru

Grid

0.078" x 0.078" (2mm x 2mm)

0.100" x 0.100" (2.54mm x 2.54mm)

Circuit Pattern

Pad per hole - both sides

Material
FR4
UL Flammability Class 94V-0
16 Pin DIP Capacity
-
Wire-Wrap Terminals
T44, T46, T49, T68, T42-1 (for 0.042" holes)
Inbord Pins
K36 (for 0.025" holes)
Socket PinsR32 (for 0.042" holes)

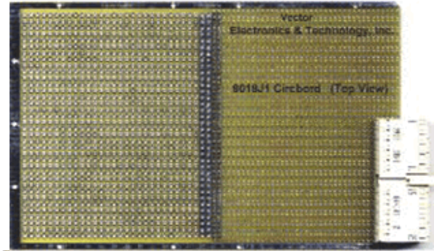

8018J1

Ordering Info

​

        Part Number : 8018 (Board only)

      Part Number : 8018J1 (Board with cPCI J1 connector installed)

Specifications
