HD34 / HD34B

■  Subracks for Non-Metric card systems

■  Rack mountable per ANSI/EIA-310-D

​■  Light weight aluminum construction

■  Conductive connections of all metal components

■  Card guides for 0.062" (1.57mm) thick PCBs

■  Card guides installed on 0.75" centers

​■  Card guides can be adjusted in any increments

■  Slots in side panels provides adjustability for T-strut rails

■  Rear T-struts for mounting connectors.​

​■  Sold in fully assembled or in kit form​

VectorPak™ subracks offer versatility within a 19” rackmount format. All racks are adjustable in both height and depth, offering standard product solutions for standard and custom requirements. All Subrack sizes are compatible with Vector prototyping boards (see Vectorbord® Plugbord™ section), and can accommodate other sizes as well.


​Card Racks with Screw-In type card guides which allows user to position guides horizontally without restrictions.

Subracks with Screw-In type card guides

Subracks can be ordered assembled or as kit form. Subrack assembly or kit includes side panels, T-strut rails, card guides, rear bracketed T-strut rails to accommodate connectors and mounting hardware.

"P" version with plastic guides, "M" version with metal aluminum guides.

Features

CCA13P-H/90 Half-width rack with 11 pair of snap-in card guides, solid top/bottom covers and rear panel

To mount card edge connectors

EIA Based VectorPak™ Non-Metric Subrack

Assembled

​Part Number

Unassembled Kit

​Part Number

Subrack Dimensions

(Height x Width x Depth)

Description

​Fits Card Size Range

2U Subrack




CCA10P/90
CCK10P/90

3.50” x 19.0” x 12.0”

21 pair screw-in plastic guides0.75” to 2.75” H x 6.50” L
CCA10M/90
CCK10M/90
3.50” x 19.0” x 12.0”
21 pair screw-in Aluminium guides
3U Subrack



CCA12P/90
CCK12P/90
5.25" x 19.0” x 9.0”21 pair screw-in plastic guides
2.50” to 4.50” H x 4.50" L
CCA12M/90
CCK12M/90
5.25" x 19.0” x 9.0”
21 pair screw-in Aluminium guides
3U Subrack




CCA13P/90
​CCK13P/90
5.25" x 19.0” x 9.0”
21 pair screw-in plastic guides
2.50” to 4.50” H x 6.50” L
CCA13P-H/90
CCK13P-H/90
5.25” x 10.25” x 9.0”
11 pair screw-in plastic guides
CCA13P-HT/90
CCK13P-HT/90

5.25” x 8.25” x 8.13”

without rack mount flanges

11 pair screw-in plastic guides
CCA13M/90
CCK13M/90
5.25" x 19.0” x 9.0”
21 pair screw-in Aluminium guides
CCA13M-H/90
CCK13M-H/90
5.25” x 10.25” x 9.0”
11 pair screw-in Aluminium guides
CCA13M-HT/90
CCK13M-HT/90

5.25” x 8.25” x 8.13”

without rack mount flanges

11 pair screw-in Aluminium guides
3U Subrack




CCA14P/90
CCK14P/90
5.25” x 19.0” x 12.0”
21 pair screw-in plastic guides
2.50” to 4.50” H x 9.60” L
CCA14M-H/90
CCK14M-H/90
5.25” x 10.25” x 12.0”
11 pair screw-in Aluminium guides
3U Subrack




CCA16P/90
CCK16P/905.25” x 19.0” x 15.75”
21 pair screw-in plastic guides
2.50” to 4.50” H x 13.50” L
4U Subrack




CCA15P/90
CCK15P/907.00” x 19.0” x 12.0”
21 pair screw-in plastic guides
4.25” to 6.25” H x 9.60” L
CCA15M/90CCK15M/907.00” x 19.0” x 12.0”
21 pair screw-in Aluminium guides
4U Subrack




CCA20P/90CCK20P/90
4U (7.00”) X 19.0” X 15.75”
21 pair screw-in plastic guides
4.25” to 6.25” H x 13.50” L
CCA20M/90
CCK20M/90
4U (7.00”) X 19.0” X 15.75”
21 pair screw-in Aluminium guides
5U Subrack




CCA17P/90
CCK17P/90
8.75” x 19.0” x 12.0”
21 pair screw-in plastic guides
6.00” to 8.00” H x 9.60” L
CCA17M/90
CCK17M/90
8.75” x 19.0” x 12.0”
21 pair screw-in Aluminium guides
6U Subrack




CCA18P/90
CCK18P/90
10.50” x 19.0” x 15.75”
21 pair screw-in plastic guides
7.75” to 9.75” H x 13.50" L
CCA18M/90
CCK18M/90
10.50” x 19.0” x 15.75”
21 pair screw-in Aluminium guides
7U Subrack




CCA19P/90
CCK19P/90
12.25” x 19.0” x 15.75"
21 pair screw-in plastic guides
9.50” to 11.50” H x 13.50” L
CCA19M/90
CCK19M/90
12.25” x 19.0” x 15.75"
21 pair screw-in Aluminium guides


Ordering Info

Screw-In Guide in TS169-3 Strut

Accessories

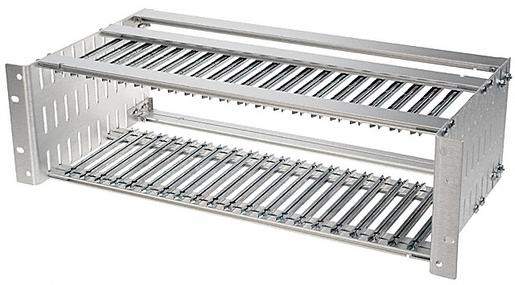

CCA13M/90
