"P" Type Side Panel
Part Number | Overall Height Dim. A | Overall Depth Dim. B | Accepts Max Card Height | Handle Part Number |
|---|---|---|---|---|
| 2U Side Panels | ||||
| SW34P89/90 | 3.48" | 8.975" | 2.75" | HA13 |
| SW34P119/90 | 3.48" | 11.975" | 2.75" | HA13 |
| SW34P156/90 | 3.48" | 15.725" | 2.75" | HA13 |
| 3U Side Panels | ||||
| SW52P89/90 | 5.23" | 8.975" | 4.50" | HA12 |
| SW52P119/90 | 5.23" | 11.975" | 4.50" | HA12 |
| SW52P156/90 | 5.23" | 15.725" | 4.50" | HA12 |
| 4U Side Panels | ||||
| SW69P89/90 | 6.98" | 8.975" | 6.25" | HA13 |
| SW69P119/90 | 6.98" | 11.975" | 6.25" | HA13 |
| SW69P156/90 | 6.98" | 15.725" | 6.25" | HA13 |
| 5U Side Panels | ||||
| SW87P89/90 | 8.73" | 8.975" | 8.00" | HA12 |
| SW87P119/90 | 8.73" | 11.975" | 8.00" | HA12 |
| SW87P156/90 | 8.73" | 15.725" | 8.00" | HA12 |
| 6U Side Panels | ||||
| SW104P89/90 | 10.47" | 8.975" | 9.75" | HA12 |
| SW104P119/90 | 10.47" | 11.975" | 9.75" | HA12 |
| SW104P156/90 | 10.47" | 15.725" | 9.75" | HA12 |
| 7U Side Panels | ||||
| SW122P156/90 | 12.22" | 15.725" | 11.50" | HA12 |
| SW122P202/90 | 12.22" | 20.250" | 11.50" | HA12 |
| 9U Side Panels | ||||
| SW157P119/90 | 15.72" | 11.975" | 15.00" | HA19-9U |
Accessories - EIA Based VectorPak™ Non-Metric Subracks
Ordering Info
Slotted side panels for EIA based VectorPak™ subracks. Slotted wall provides horizontal and vertical adjustment of T-strut rails. Rack mount and handle mounting holes on front flange. 0.080" thick aluminum material with clear chem film finish.

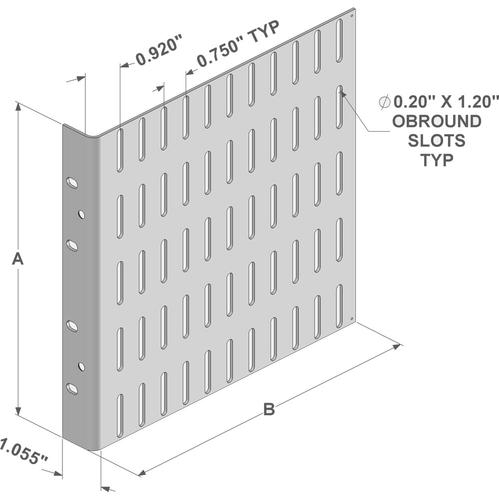

"P" type side panel
