Dimensions (H x W x Thick)	6.00" x 6.00" x 0.062" (152.4mm x 152.4mm x 1.57mm)
Hole Diameter	0.042" (1.067mm) Not Plated Thru
Grid	0.100" x 0.100" (2.54mm x 2.54mm)
Circuit Pattern	Pad per hole - one side only
Material	FR4
UL Flammability Class	94V-0
16 Pin DIP Capacity	72
Wire-Wrap Terminals	T44, T46, T49, T68
Solder Terminals	T42-1, K24C, K31C
Wire-Wrap Socket Pins	R32

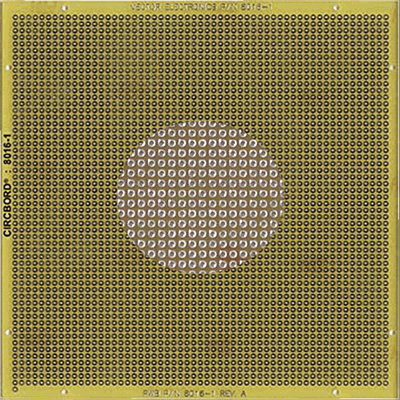

8016-1 Vectorbord® Circbord™

Layout Paper ►

Description

Downloads

Specifications

Part Search

Ordering Info

Part Number : 8016-1

• Pad-Per-Hole pattern one side only.
• 0.080" diameter isolated solder pad around each hole on one side.
• Unrestricted component placement and extended area for high density applications.
