Ordering Info

​

        Part Number : 8006

Description

Dimensions

(H x W x Thick)

5.00" x 13.25" x 0.062"

(127mm x 336.55mm x 1.57mm)

Hole Diameter

0.042" (1.067mm) Plated Thru

Grid

0.100" x 0.100"

(2.54mm x 2.54mm)

Circuit Pattern

Pad per hole both sides

Material
FR4
UL Flammability Class 94V-0
16 Pin DIP Capacity
60
Wire-Wrap Terminals
T44, T46, T49, T68
Solder TerminalsT42-1, K24C, K31C
Wire-Wrap Socket Pins
R32


• Pad-Per-Hole. Copper plated-thru holes both sides.

• 0.080” diameter isolated solder pad around each holes on both sides.
• Unrestricted component placement and extended area for high density applications.
• Board can be cut down into smaller units.​

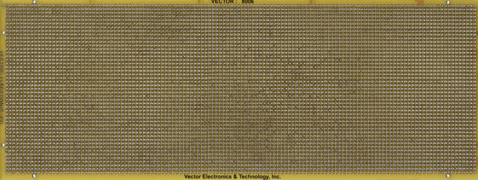

8006   Vectorbord® Circbord™
