• Pad-Per-Hole both sides.
• 0.085” square pads around each hole.
• Top / Bottom row on 0.200" pitch with no plating and pads.
• Peripheral Ground plane are identical on both sides and holes are plated thru
Specifications

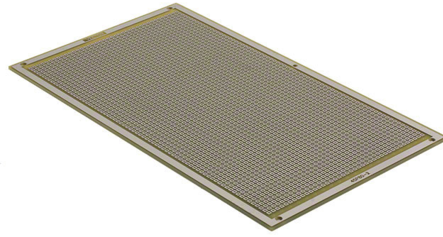

45P80-2 Vectorbord® Circbord™
Downloads
Dimensions (H x W x Thick) | 4.50" x 8.08" x 0.062" (114.3mm x 205.23mm x 1.57mm) |
| Hole Diameter | 0.042" (1.067mm) Plated Thru |
| Grid | 0.100" x 0.100" square pads (2.54mm x 2.54mm) |
| Circuit Pattern | Pad per hole both sides |
| Material | FR4 |
| UL Flammability Class | 94V-0 |
| 16 Pin DIP Capacity | 80 |
| Wire-Wrap Terminals | T44, T46, T49, T68 |
| Solder Terminals | T42-1, K24C, K31C |
| Wire-Wrap Socket Pins | R32 |
Description
Ordering Info
Part Number : 45P80-2
