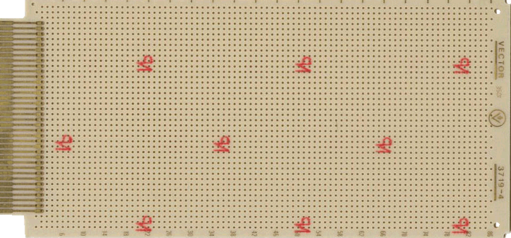

3719-4  Vectorbord® Plugbord™

Description

• 72 Gold plated edge contacts (36 each side)

  on 0.100"(2.54mm) centers.
​• No circuit pattern edge contacts only both sides.
• Unrestricted component placement over entire board surface
• Row and column legends provided

Downloads

PLEASE NOTE THIS PART IS NEAR END OF LIFE AS OF 01/24/2020

Specifications

Ordering Info

​

        Part Number : 3719-4

Dimensions

(H x W x Thick)

4.50" x 9.60" x 0.062"

(114.3mm x 243.84mm x 1.57mm)

Hole Diameter

0.042" (1.067mm) Not Plated Thru

Grid

0.100" x 0.100"

(2.54mm x 2.54mm)

Circuit PatternNo pattern, edge contacts only both sides
Material
CEM-1
UL Flammability Class 94V-0
16 Pin DIP Capacity
90
Wire-Wrap Terminals
T44, T46, T49, T68
Wire-Wrap Socket Pins
R32
Solder ConnectorR636-2
Wire-Wrap ConnectorR636-1
Card Edge Extender3690-2
