T- Pattern, Vectorbord®

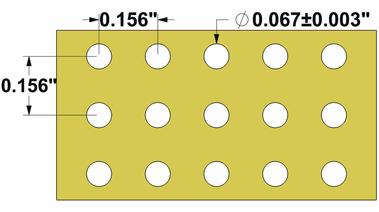

T - Pattern Detail
Specifications
Part Number : 17T36WE
Size/Dimensions | 3.00" W x 6.00" L (76.2mm x 152.4mm) |
| Board Thickness | 0.062" (1.57mm) |
| Hole Diameter | 0.067" (1.70mm) Not Plated Thru |
| Hole Pattern | T |
| Material | FR4 Epoxy Glass |
| Copper Clad / Unclad | Unclad (No Copper on either side) |
| UL Flammability Class | 94V-0 |
| RoHS Status | Lead free / RoHS Compliant |
