Vectorbord®
Size/Dimensions | 4.80" W x 17.00" L (121.9mm x 431.8mm) |
| Board Thickness | 0.062" (1.57mm) |
| Hole Diameter | 0.062" (1.57mm) Not Plated Thru |
| Hole Pattern | H |
| Material | FR4 Epoxy Glass |
| Copper Clad / Unclad | Unclad (No Copper on either side) |
| UL Flammability Class | 94V-0 |
| RoHS Status | Lead free / RoHS Compliant |
Specifications
Part Number : 170H48WE

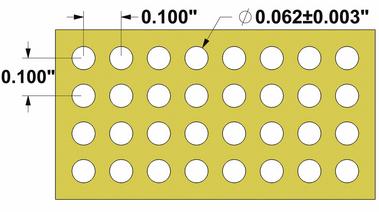

H - Pattern Detail
