Size/Dimensions | 16.00" W x 18.00" L (406.4mm x 457.2mm) |
| Board Thickness | 0.062" (1.57mm) |
| Hole Diameter | 0.062" (1.57mm) Not Plated Thru |
| Hole Pattern | H |
| Material | FR4 Epoxy Glass |
| Copper Clad / Unclad | Unclad (No Copper on either side) |
| UL Flammability Class | 94V-0 |
| RoHS Status | Lead free / RoHS Compliant |
Part Number : 155H175WE
Vectorbord®
Specifications

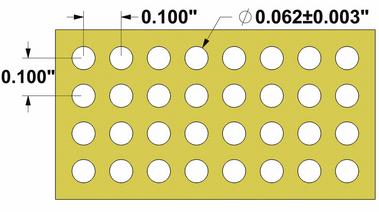

H - Pattern Detail
